Commercial & Residential Vault Doors - Graffunder Safes & Vault Doors

We can assist you in custom designing the perfect vault to suit your specific needs. Custom sizes - including wall thickness & rough opening.

These doors can be built to your specifications to protect not just your property, but your entire family from home invasion, and natural disasters.

We can also add our INTERIOR LOCKING OPTION to turn any of our standard vault doors into a safety retreat door. This feature allows you to lock and unlock the door from the inside. Please contact us for more details.

B-Rate Construction

3-1/2" overall door, insulated with U.L. approved material, outer plate being 1/2" thick high tensile steel.

C-Rate Construction

4" overall door, insulated with U.L. approved material, outer plate being 1" thick high tensile steel.

E-Rate Construction

4-1/2" overall door, insulated with U.L. approved material, outer plate being 1-1/2" thick high tensile steel.

F-Rate Construction

4-1/2" overall door, insulated with U.L. approved material, outer plate being 1" thick high tensile steel and 1/2" thick Manganese.

All Vault Doors Feature

1 - hour 1750 degree factory fire rating.
8 to 10 solid 1-1/2" stainless steel locking bolts, active front and back to prevent door removal after hinge attack.
U.L. listed group II combination lock, with re-lock and 1 million possible combinations.
Additional re-locking devices activated by tool and/or torch attack for added security.
Lock protected by Ball Bearing Anti Drill Barriers.
Fully recessed, tightly toleranced door for protection against forced entry.
High temperature heat seal door jam with additional intumescent fire and smoke seal.
Hardened hinge pins that ride on thrust bearing washers.
8" standard re-enforced wall thickness for all doors.
Attractive paint finishes to choose from.
Interior escape device standard.

Door Security Features

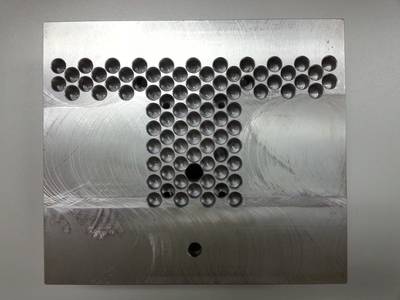

Mounting Block – Back: Showing ball-bearing placement holes.

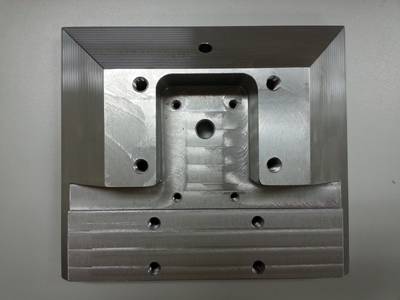

Mounting Block – Front: Front face of mounting block.

Mounting Block – Front: Front face of mounting block with lock placement.

Mounting Block – Front: Front face of mounting block with cover plate over lock.

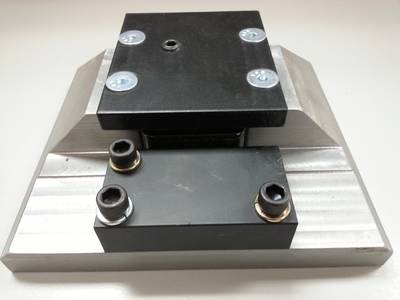

Mounting Block – Front: Front face of mounting block with lock cover plate top, and snubber bar block bottom.

Mounting Block – Front: Front face of mounting block, top view with relocker cable attachment. Also shows lock cover plate and snubber bar block at left.

Mounting Block – Front: Shows mounting block from the right side. Top level right, lock cover plate. Lower left, snubber bar block.

Compare Specs

MODEL	ROUGH OPENING	CLEAR OPENING	WEIGHT
VB8240 Out-Swing Door	82H X 40W X 8WALL	76 1/4H X 33W x 8WALL	1,500
In-Swing Door	82H X 40W X 8WALL	75 1/4H X 30W x 8WALL
VC8240 Out-Swing Door	82H X 40W X 8WALL	76 1/4H X 33W x 8WALL	2,050
In-Swing Door	82H X 40W X 8WALL	75 1/4H X 30W x 8WALL
VE8240 Out-Swing Door	82H X 40W X 8WALL	76 1/4H X 33W x 8WALL	2,625
In-Swing Door	82H X 40W X 8WALL	75 1/4H X 30W x 8WALL
VF8240 Out-Swing Door	82H X 40W X 8WALL	76 1/4H X 33W x 8WALL	2,625
In-Swing Door	82H X 40W X 8WALL	75 1/4H X 30W x 8WALL
